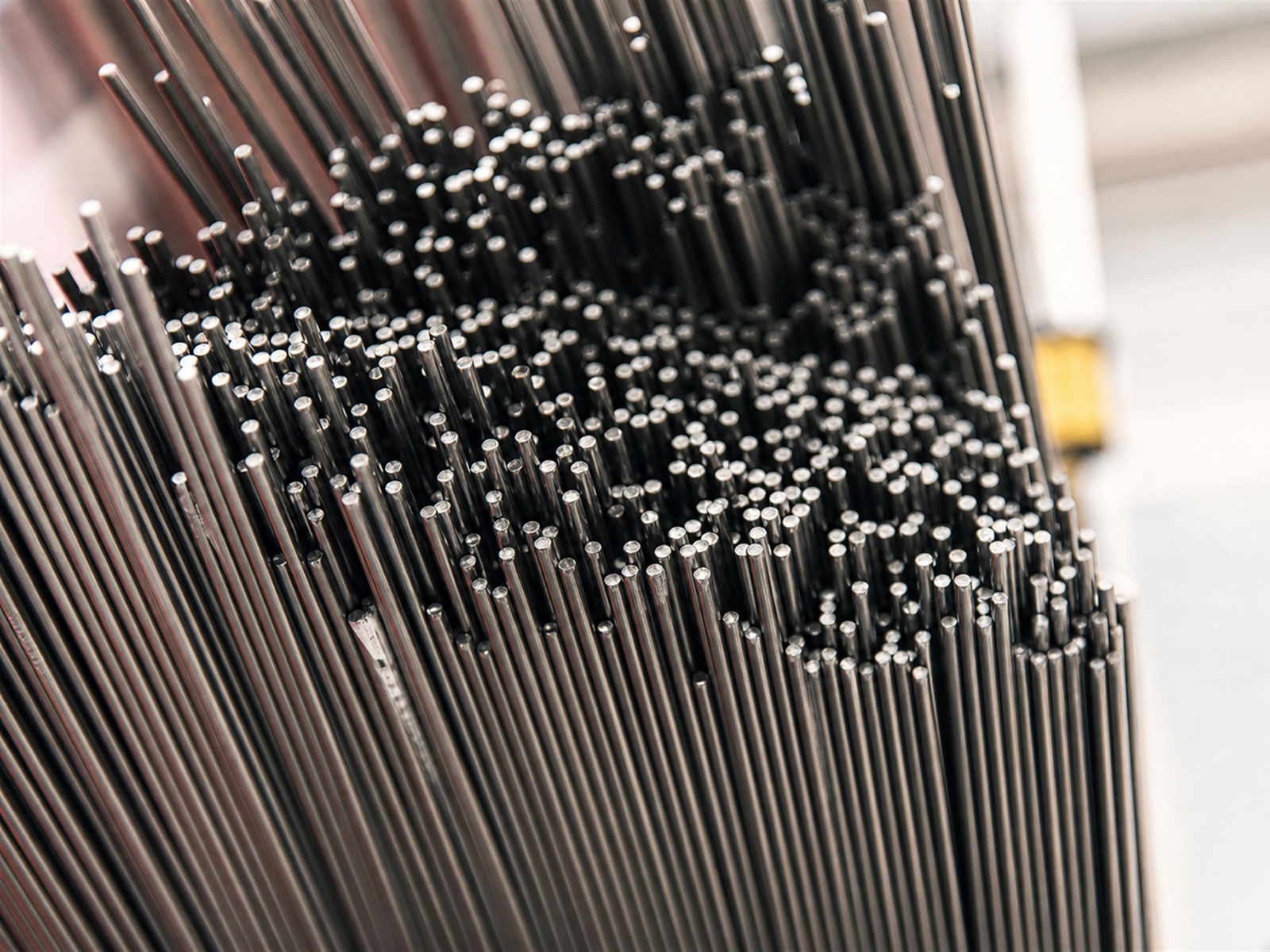

Why Is Gr1 Titanium Bar Suitable for Highly Corrosion-Resistant Industrial Applications?

Direct engineering answer. Gr1 Titanium Bar should be evaluated against the finished component, product form, governing specification, downstream process and acceptance evidence. A general property value is an orientation tool; the released drawing, current certificate and inspection plan control the final decision.

In the chemical, marine, medical, and precision electronics industries, material corrosion is one of the core issues that engineers and procurement decision-makers have long been concerned about. Plain carbon steel often develops obvious rust within a relatively short time in acidic, alkaline, or high-chloride environments, leading to equipment downtime and rising maintenance costs. Gr1 titanium bar is a commonly used high-purity grade in commercially pure titanium, with the titanium content commercially expressed as “approximately 99.5% balance.” Its corrosion resistance derives primarily from the passivation film that forms naturally on the surface, rather than from “inert metal” properties. This material generally exhibits good corrosion resistance in seawater, dilute acids, alkaline solutions, and chloride media, but its applicability must be assessed in conjunction with the specific concentration, temperature, stress, and media conditions.

1. Corrosion Resistance Mechanism of Gr1 Titanium Bar: The “Self-Healing” Nature of the Passivation Film

(1) Formation Mechanism of the Natural Oxide Film

When titanium comes into contact with air or water, a TiO₂ oxide film approximately 2–10 nanometers thick spontaneously forms on the surface. This film is typically dense, uniform, and strongly adherent, significantly reducing contact between the titanium substrate and corrosive media as well as the rate of ionic migration, but it should not be understood as a “complete barrier.” In environments containing fluoride ions, hot concentrated acids, or hot concentrated alkalis, this film can be damaged or dissolve more rapidly. Unlike iron oxide (Fe₂O₃), which is loose and easily spalled, the TiO₂ oxide film is relatively stable in most neutral, oxidizing, or oxygen-bearing environments and can re-passivate relatively quickly under oxygen-rich conditions after slight scratching. It should be made clear, however, that the TiO₂ oxide film is not insoluble in all acids and alkalis; key exceptions include hydrofluoric acid, hot concentrated sulfuric acid, and hot concentrated alkalis.

(2) Corrosion Potential and Passivation Behavior

From an electrochemical standpoint, the standard electrode potential of titanium is relatively negative, so its corrosion resistance cannot be explained by a “high standard electrode potential.” In oxidizing media or oxygen-bearing environments, titanium can form a stable passivation film, manifested as a relatively high corrosion potential and strong passivation capability. In chloride solutions, the pitting potential of titanium is typically much higher than that of stainless steel. This means that, at the same chloride ion concentration, a higher driving potential is generally required to initiate pitting on the titanium surface, so the actual pitting risk is lower. It should be noted, however, that titanium generally lies in the passivation region rather than the thermodynamically stable region in most solution systems; once the passivation film is destroyed, its thermodynamic activity remains high.

(3) Effect of Low Impurity Content on Compositional Uniformity and Mechanical Properties

Gr1 titanium bar has relatively strict limits on impurities such as iron, oxygen, and nitrogen. Low impurity control helps maintain compositional uniformity, ductility, toughness, and weldability, and reduces impurity segregation or local property fluctuations. The claim that low impurity content directly translates to “avoidance of grain-boundary brittle phases or localized galvanic corrosion sites” lacks sufficient basis, but in applications requiring high purity and high cleanliness, strict impurity control is of practical significance for improving workability and reducing the risk of localized defects.

2. Chemical Stability of Gr1 Titanium Bar in Aggressive Media

(1) Corrosion Resistance Comparison of Gr1 Titanium Bar in Different Corrosive Media

Note: This table is intended only for general trend comparison and cannot substitute for specific corrosion testing. Actual corrosion resistance is significantly affected by temperature, concentration, flow velocity, aeration conditions, impurities, and stress state.

(2) Stability in Acidic Environments

Gr1 titanium bar typically exhibits a very low corrosion rate in oxidizing acids of moderate concentration at room temperature, such as nitric acid, and is also often superior to 316L stainless steel in dilute hydrochloric acid and very low-concentration sulfuric acid. However, titanium has clear applicability limits in reducing acids; for example, hydrofluoric acid and hot concentrated sulfuric acid can destroy the passivation film and cannot be used or require strict limitation. In the chemical industry, if reactor linings and agitator shafts are manufactured from Gr1 commercially pure titanium bar, the actual service life depends on media composition, temperature, flow velocity, and operational fluctuations, and a uniform lifetime statement such as “10 years trouble-free” is inappropriate. Under suitable service conditions, Gr1 components can typically reduce the frequency of replacement, but this should be verified through corrosion coupons, field operating data, or professional literature.

(3) Corrosion Resistance in Chloride-Enriched Environments

Chloride ions are common aggressive ions that destroy the passivation film of stainless steel. In seawater desalination units, electroplating tanks, and chlor-alkali industry pipelines, chloride concentrations often exceed the tolerance limit of 316L stainless steel. The TiO₂ oxide film of Gr1 titanium bar has good resistance to chloride ion penetration and typically exhibits a very low corrosion rate in room-temperature seawater and salt spray conditions, with a typical annual corrosion rate in seawater that can be below 0.002 mm/year. However, under conditions such as high-temperature seawater, occluded crevices, or polluted seawater, titanium may also be subject to crevice corrosion or hydrogen absorption risks. Design and operation should avoid long-term stagnant flow, high-temperature chloride-rich conditions, and narrow crevice structures such as bolted connections.

(4) Performance in Alkaline and Mixed Media

In environmental desulfurization units, wastewater treatment reactors, and alkaline cleaning equipment, the media may be alkaline and contain a variety of mixed ions. Gr1 titanium bar generally has good alkali resistance in dilute alkali at room temperature and at low-to-moderate temperatures, but under hot concentrated alkali, specific contamination, or stress conditions, hydrogen embrittlement or cracking may still occur, and it should not be stated that “intergranular corrosion or stress corrosion cracking will not occur.” In food, pharmaceutical, and laboratory clean equipment, Gr1 titanium is often used because of its low ion-release risk and high cleanliness, but verification still must be performed according to the specific media conditions.

3. Physical and Mechanical Properties of Gr1 Titanium Bar and Their Engineering Significance

(1) Key Physical and Mechanical Parameters of Gr1 Titanium Bar

Note: ASTM B348 specifies only minimum values for the tensile strength and yield strength of Gr1 and does not specify upper-limit ranges such as 240–345 MPa or 170–275 MPa; the upper-limit values vary with product specification and processing condition.

(2) Value of the Lightweight Characteristic for Industrial Equipment

A density of 4.51 g/cm³ means that, at equal volume, Gr1 titanium bar is approximately 40% lighter than carbon steel. In aerospace, marine, and mobile chemical equipment, a reduction in total equipment weight can translate into lower energy consumption and greater operational convenience. However, the unit price and processing cost of titanium are relatively high, so engineering decisions should weigh the weight-saving benefit against material cost.

(3) Processing Flexibility Afforded by High Elongation

Gr1 commercially pure titanium has a relatively high elongation and good cold-forming potential, and can be cold drawn, bent, and stamped into complex shapes. However, cold forming of commercially pure titanium still involves significant springback, work hardening, minimum bending radius, and annealing control requirements, and it cannot be simply assumed that “no cracks will occur.” The forming process should be designed with intermediate annealing and process parameters based on the material condition and the degree of deformation.

(4) Combined Advantages of Non-Magnetic and Biocompatible Properties

Gr1 commercially pure titanium has a relative magnetic permeability close to 1 and is a non-magnetic material, producing little magnetic field interference for precision instruments, MRI-compatible equipment, or semiconductor manufacturing equipment. At the same time, high-purity titanium presents a low risk of metal ion release and is often used for medical devices and food-contact materials. However, Gr1 has relatively low strength; for high-load-bearing medical components such as orthopedic screws and joint stems, higher-strength grades such as Ti6Al4V are typically used. Gr1 is more suitable for low-stress or non-load-bearing components.

4. Typical Highly Corrosion-Resistant Industrial Applications of Gr1 Titanium Bar

(1) Chemical Anticorrosion Equipment: Heat Exchangers and Reactors

Heat exchanger tube sheets, tie rods, bolts, and reactor agitator shafts are common applications of Gr1 titanium bar in the chemical industry. These components may be in long-term contact with acidic or chloride-containing media. The specific replacement interval is strongly correlated with media composition, concentration, temperature, flow velocity, and stress level, and cannot be broadly compared as “stainless steel 2–3 years, Gr1 over 10 years.” Under suitable service conditions, Gr1 titanium components often exhibit low corrosion rates and longer inspection intervals, but procurement decisions should be based on corrosion testing, operating experience, or literature data.

(2) Seawater Desalination and Marine Engineering

The chloride ion concentration of seawater is approximately 19, 000 mg/L, exceeding the pitting resistance range of most stainless steels. Pipe fittings, flanges, valves, and fasteners made from Gr1 titanium bar are already widely used in reverse osmosis membrane systems and multi-effect evaporation units.

In room-temperature seawater and marine atmospheres, titanium generally has good resistance to salt spray corrosion. However, marine biofouling can form locally occluded environments and increase the risk of crevice corrosion; high-temperature seawater service should be evaluated on a case-by-case basis, and structural design should avoid narrow crevices and stagnant-flow regions.

(3) Medical Devices and Laboratory Clean Equipment

Gr1 titanium bar can be used for low-stress or non-load-bearing medical device connecting rods, clamps, and brackets, as well as dental blanks and agitator shafts, clamps, and structural components in pharmaceutical and semiconductor cleanrooms. For load-bearing medical components such as surgical implants, Gr1 has relatively low strength, and higher-strength titanium alloys such as Ti6Al4V are the common choice. The grade should be determined according to the specific loading requirements, applicable standards, and clinical specifications.

5. Quality Control Factors to Consider When Selecting Gr1 Titanium Bar

(1) Matching of Surface Condition and Machining Precision

In industry, Gr1 titanium bar is often classified by supplier product category into black bar (hot-rolled/forged), turned bar, polished bar, and pickled bar, but this classification is not defined by ASTM B348 and should be clearly stated in procurement documents.

• Black bar: suitable for subsequent machining; tolerances are typically agreed between the supplier and the buyer, for example approximately ±1.0 mm;
• Turned bar: surface roughness Ra of approximately 3.2–6.3 μm, suitable for direct assembly;
• Polished bar: Ra ≤ 1.6 μm, with the outer diameter tolerance typically per the lowercase h series, such as h7/h8, or with a tolerance value specified directly;
• Pickled bar: shows the metallic base color after scale removal, suitable for welding and anticorrosion applications.

Different surface conditions correspond to different processing steps and costs, and requirements should be clearly specified before purchasing based on the actual service conditions.

(2) Completeness of Material Certification and Test Reports

Gr1 titanium bar conforming to ASTM B348 or GB/T 2965 should be accompanied at delivery by a material certificate (MTC) including measured chemical composition values (Ti, Fe, O, N, C, H, etc.), mechanical property test results (tensile strength, yield strength, elongation), and a batch traceability number. Non-destructive testing reports such as ultrasonic or eddy current inspection can help verify internal and surface defects in the bar and are especially important for aerospace and medical applications with high safety requirements. Note that gaseous elements such as O, N, and H should be analyzed by appropriate methods and cannot be determined by XRF alone.

(3) Influence of the Production Process Chain on Material Consistency

The general production route for Gr1 commercially pure titanium bar can be summarized as:

High-purity titanium sponge → vacuum arc remelting → forging breakdown → hot rolling or precision forging → stress-relief annealing → straightening → pickling → turning/grinding or polishing → precision cutting → non-destructive testing.

Among these steps, the number of melting passes is not a mandatory requirement for all industrial bars. Ordinary industrial applications may use single or double melting, while high-safety-grade applications such as aerospace and medical often require multiple vacuum arc remelting passes. Straightening should generally be arranged after annealing and before turning or grinding to ensure final dimensions and residual stress; the exact sequence may vary slightly among suppliers. When purchasing, procurement should request process descriptions and quality records from the supplier, with particular attention to the number of melting passes, forging ratio, annealing schedule, straightening process, and non-destructive testing coverage. A supplier’s advertised capacity or production line configuration should not replace verifiable quality data.

6. Conclusion

Gr1 titanium bar’s good corrosion resistance arises from factors such as high purity, a surface passivation film, corrosion potential characteristics, and low impurity control, but its corrosion resistance cannot be guaranteed in all media. It is suitable for a wide range of chemical, marine, medical, and precision electronics applications, but material selection must be constrained by concentration, temperature, stress, and media conditions. Sound material selection, strict quality control, and structural design are the keys to reducing whole-life-cycle cost, and marketing-style promises or generalized lifetime data should not be relied upon.

FAQ

(1) Q1: What are the substantive differences in corrosion resistance between Gr1 and Gr2 titanium bar?

The corrosion resistance of the two is basically comparable; the main differences are in strength, ductility, and impurity content. Gr1 has higher purity and better ductility with slightly lower strength, while Gr2 has somewhat higher strength. The choice should be based on the forming process, strength requirements, and high-cleanliness requirements, rather than assuming that Gr1 has significantly better oxide film stability than Gr2 in extreme corrosive environments.

(2) Q2: Does Gr1 commercially pure titanium bar retain its corrosion resistance in high-temperature acidic environments?

High temperature changes the corrosion behavior of titanium in acidic media, and the differences among acid types are large. In dilute hydrochloric acid at room temperature with a concentration below 5%, Gr1 generally performs well; the tolerable concentration of sulfuric acid is lower, and 30% sulfuric acid may already produce non-negligible corrosion, so a lower concentration or temperature is typically required; oxidizing acids such as nitric acid are generally corrosion resistant at moderate concentrations and room temperature, but high-temperature, high-concentration, or impurity-containing conditions require evaluation. Therefore, a blanket statement such as “reliable below 80℃ within the dilute acid range” cannot be made; concentration and temperature limits should be specified separately and verified through corrosion testing or literature data.

(3) Q3: When purchasing Gr1 titanium bar, how can the authenticity of the supplier’s material be quickly assessed?

A complete MTC material certificate should be requested, and the measured chemical composition should be checked against the requirements of ASTM B348 UNS R50250 or the corresponding Chinese standard. When necessary, a third-party laboratory should be engaged for re-verification: metallic elements can be analyzed by methods such as ICP-OES/ICP-MS, while O, N, and H should be analyzed by inert gas fusion or thermal conductivity methods. XRF is not effective for gaseous elements and cannot serve as the sole means of complete composition verification. Mechanical properties should also be re-tested with specimens prepared in accordance with the standard.

Contact Us

Looking for a reliable manufacturer, supplier, or processing service provider for Gr1 titanium bar (Grade 1 commercially pure titanium bar, UNS R50250)? A professional titanium materials company with full-process capability from high-purity titanium sponge, vacuum arc remelting (VAR), forging breakdown, and hot rolling/precision forging to stress-relief annealing, straightening, pickling, and turning/grinding can support custom specifications to standards such as ASTM B348 and GB/T 2965, and can provide material certificates (MTC), measured chemical composition data (including O, N, and H gaseous elements), mechanical property reports, non-destructive testing reports, and batch traceability documents. For chemical anticorrosion, seawater desalination, medical, and precision electronics applications, corrosion resistance reference data and surface condition selection recommendations can be provided. Please contact us at: sales@titaniumvalleys.com

References

1. China Nonferrous Metals Standardization Technical Committee. GB/T 2965—2017 Titanium and Titanium Alloy Bars [S]. Beijing: Standards Press of China, 2017.
2. China Nonferrous Metals Standardization Technical Committee. GB/T 3620.1—2016 Titanium and Titanium Alloy Designation and Chemical Composition [S]. Beijing: Standards Press of China, 2016.
3. China Nonferrous Metals Standardization Technical Committee. GB/T 3620.2—2007 Permissible Variation of Chemical Composition for Wrought Titanium and Titanium Alloy Products [S]. Beijing: Standards Press of China, 2007.
4. China Steel Standardization Technical Committee. GB/T 20878—2007 Stainless Steels and Heat-Resisting Steels Designation and Chemical Composition [S]. Beijing: Standards Press of China, 2007.
